MIDFLOW® / HIFLOW®

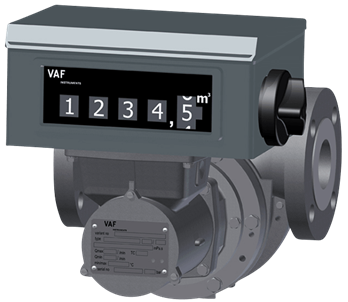

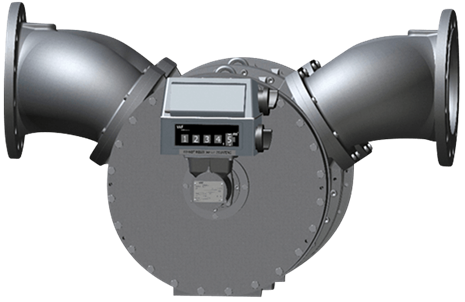

MIDFLOW® / HIFLOW®   VAF Instruments MidFlow®/HiFlow® positive displacement type liquid Flowmeters are used in continuous metering applications, in-line blending processes and batch applications. MidFlow®/HiFlow® Flowmeters have a simple, rugged design. With only few almost frictionless moving internal parts there is hardly any wear in the Flowmeter which safeguards a typical long-lasting lifetime. MidFlow®/ HiFlow® meters have no mechanical seals saving you from regular maintenance and possible leakage of process liquids into the environment. The Flowmeter is driven by the process liquid which makes it suitable for distant locations without power supply. The high accuracy of the Flowmeter (better than 0,1% and repeatability 0,05%) is not influenced by process pressure or temperature, mechanical pipe strain or liquid turbulence and therefore straight inlet and outlet pipe pieces are not required.
