TD-4100XD Oil in Water Monitor
Online hydrocarbon measurements for hazardous environments.

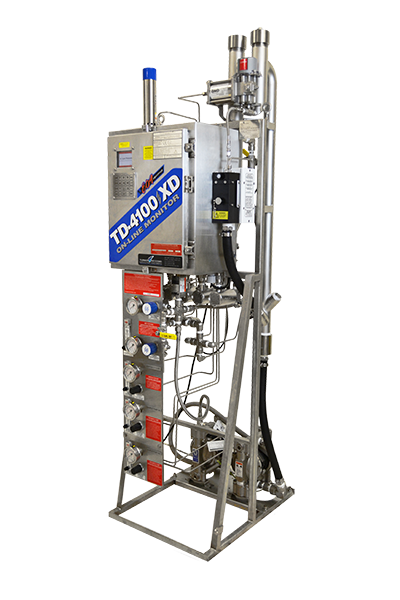

The TD-4100XD is a ruggedized version of the TD-4100 continuous online oil in water monitor. The XD is designed specifically for offshore oil production, refining, petrochemical, mining, and other industries that require robust online hardware for severe duty and hazardous area locations. The monitor is skid or wall mounted and constructed of 316 stainless steels. It also includes an external keypad for operation in corrosive environments.
The TD-4100XD detects and measures crude oil, refined fuels, fuel oils, lubricating or hydraulic fluids, and aromatic solvents in water. Detection limits range from low ppb (µg/L) to high ppm (mg/L).

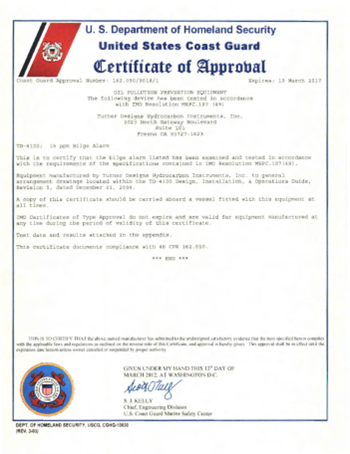

Options: Process chemistry control for scale, iron sulphide, wax, etc., pumps, internal heater, vortex cooler, various communication protocols, IMO 107(49) certification, multi-stream switching, special wetted materials, ABS, DNV, BV shipboard certifications, project management compliance, data books, worldwide field service.
